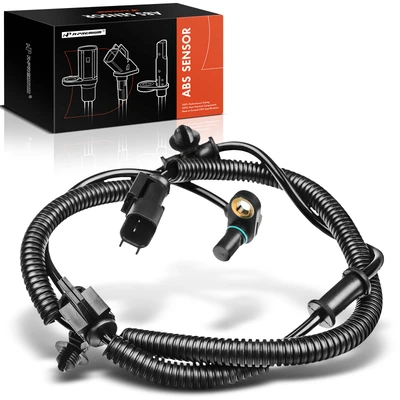

Ford F-150 ABS Speed Sensor

ABS Speed Sensor: Why Wheel Speed Data Matters for Safe Braking

An ABS speed sensor (also called a wheel speed sensor or abs or wheel sensor) is a critical input for the anti lock braking system. It measures wheel speed and sends a signal to the ABS computer so the system can detect rapid deceleration, predict wheel lockup, and regulate brake pressure during hard braking. When the sensor’s signal output performance is stable, the ABS can keep the wheels from locking, helping you maintain steering control and improving stability on wet, dusty, or uneven roads.

Most sensors rely on a magnetic circuit and a changing magnetic field as a target wheel (tone ring/reluctor) passes the sensor tip. Correct air gap and proper mounting are essential: even small variations in installation height or alignment can affect output wave form, output voltage, and pulse width, which directly impacts ABS response.

ABS System Failure Symptoms and What Usually Causes Them

When a sensor becomes a failing sensor, the most visible sign is an ABS warning lamp. You may also notice traction-related intervention changes, longer stopping distances on slippery surfaces, or ABS activation that feels abnormal. An abs system failure can be triggered by several practical issues: damaged sensor harness, loose or corroded connectors, broken wire clips, or contamination at the sensor tip.

Because sensors sit near the wheel hub and underbody, they’re exposed to harsh elements—water, road salt, and temperature swings. Brake dust and metallic debris can collect near the sensor tip and disrupt the magnetic field, leading to low voltage output or inconsistent readings. In some rear-wheel-drive layouts, the sensor may be associated with rear differential or rear differential generally speed measurement in certain rear wheel drive applications, so physical location and routing can vary by vehicle.

Choosing a Wheel Speed Sensor That Matches OE Fit and Signal Quality

For conversion-focused shopping, selection should prioritize matching OE fitment: correct critical sensor dimensions, correct connector style (oe connectors), and correct mounting geometry so you can ensure proper mounting and maintain the designed air gap. A good sensor should have a stable magnetic field and consistent electrical behavior—proper wire winding, sealed housings, and a reliable, water tight connection to protect signal integrity over time.

Quality and durability matter because the ABS sensor is a critical function component. Inferior materials or inadequate quality inspection can lead to early failure, weak signal output, or fitment issues like sensor tip hitting a rotating target. For best results, choose a sensor engineered for your vehicle’s make/model and confirm the exact install position (front/rear), connector type, and routing points to prevent wires from rubbing or stretching during suspension movement.
