Fuel Injector Module Wiring Harness

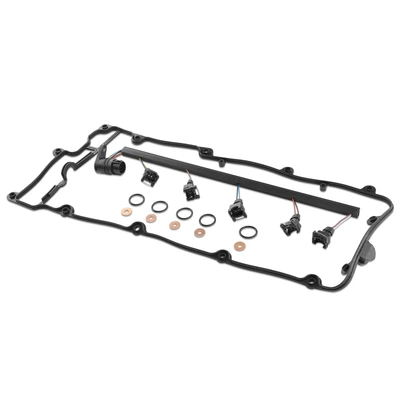

The Fuel Injector Module Wiring Harness, also known as the FICM harness, is responsible for delivering electrical power and signals to the fuel injector module. The fuel injector module controls the fuel injectors, which are responsible for delivering the precise amount of fuel into the engine cylinders for combustion.

The wiring harness is a collection of wires, connectors, and terminals that form a complete electrical pathway. It ensures proper communication and power supply between the vehicle's electrical system and the fuel injector module. The FICM wiring harness is designed to withstand the operating conditions of the engine compartment, including heat, vibration, and exposure to various elements.

Bad fuel injector harness symptoms

A faulty or bad fuel injector harness can cause several symptoms indicating potential issues with the fuel injection system.

• Engine misfires: Rough idling, hesitation, or loss of power.
• Engine performance issues: Poor acceleration, decreased fuel efficiency, or overall reduced performance.
• Starting difficulties: Extended cranking times, difficulty starting, or engine stalling.
• Check Engine Light (CEL) or error codes: Illumination of the CEL and specific error codes related to fuel injector circuitry or electrical connectivity.
• Fuel odor or leaks: Possible fuel leaks or odor due to compromised connections or damaged wiring insulation.

Common causes of FICM wiring harness failure

The common causes of failure in Fuel Injector Module Wiring Harnesses can include:

• Wear and Tear: Degradation over time from heat, vibration, and use.
• Corrosion: Damage caused by moisture, chemicals, or environmental elements.
• Physical Damage: Impact, mishandling, or friction leading to wire damage.
• Faulty Connections: Loose or improperly secured connections.
• Manufacturing Defects: Design, material, or assembly issues during manufacturing.
• Environmental Factors: Extreme temperatures, chemicals, or moisture.

To minimize the risk of failure, regular inspection, proper maintenance, and addressing any issues promptly are recommended. Additionally, protecting the wiring harness from harsh environmental conditions and implementing rodent deterrent measures can help prolong its lifespan.
