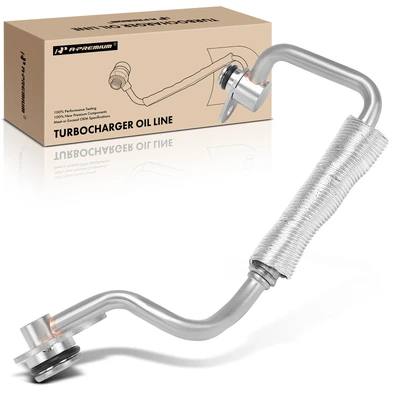

Ford Turbocharger Oil Line

Types of turbocharger oil line

The Turbocharger Oil Line in a car is a set of oil lines and hoses that connect the engine's oil system to the turbocharger. There are several types of Turbocharger Oil Lines that can be found in different turbocharger systems. For example:

• Turbo oil feed line: This line connects the engine's oil supply to the turbocharger, supplying pressurized oil for lubrication and cooling of the turbocharger's moving parts. It typically includes fittings, banjo bolts, and a flexible hose.
• Turbo oil return line: The oil return line collects the used oil from the turbocharger and directs it back to the engine's oil pan or sump. It ensures proper oil drainage and prevents oil accumulation in the turbocharger. It may include fittings, a flexible hose, and an integrated oil return flange.
• Drain lines: Some turbocharger systems feature additional drain lines apart from the main oil return line. These drain lines help ensure efficient oil drainage from the turbocharger and prevent oil accumulation.
• Oil cooler lines: In turbocharger setups with an integrated oil cooler, oil cooler lines connect the turbocharger system to the oil cooler. These lines allow the oil to flow through the cooler for heat dissipation and temperature regulation.
• Restrictor lines: In specific turbocharger applications, a restrictor line may be used to control the flow of oil to the turbocharger. It typically includes a restrictor orifice or fitting that limits the oil pressure entering the turbocharger.

Potential causes and consequences of oil leaks in the turbocharger oil line

Oil leaks in the Turbocharger Oil Line can occur due to various reasons. They may include:

• Damaged or deteriorated seals or gaskets: Causes loss of oil pressure, inadequate lubrication, increased friction, reduced performance, efficiency, and potential turbocharger failure.
• Loose or faulty fittings: Leads to oil seepage or spray, engine compartment contamination, reduced oil supply to the turbocharger, and increased fire hazard risk.
• Cracked or damaged oil line: Causes oil leaks, loss of oil pressure, inadequate lubrication, increased oil consumption, and potential engine damage.
• Improper installation or connection: Results in oil leaks, oil seepage or detachment, oil loss, potential engine damage, and decreased turbocharger performance.

Promptly addressing oil leaks is essential to prevent further complications and maintain the proper functioning of the turbocharger system.

How to select a turbocharger oil line?

To ensure that the turbocharger oil Line selected is suitable for your engine, turbocharger system, and operating conditions, providing reliable and efficient oil flow to support proper turbocharger function, you are suggested to take these key factors into consideration:

• Material quality and compatibility: Choose oil lines made from high-quality materials that are compatible with the engine's oil type. The lines should be resistant to high temperatures, oil degradation, and corrosion for durability and longevity.
• Pressure and flow requirements: Ensure that the oil lines can handle the required oil pressure and provide sufficient flow to properly lubricate and cool the turbocharger. Proper sizing and diameter are essential for optimal oil flow.
• Reliability and leakage prevention: Look for Turbocharger Oil Lines with a proven track record of reliability and a design that minimizes the risk of oil leaks. Quality fittings, seals, and connections are crucial to prevent oil leakage.
• Size and diameter: Proper sizing of the oil lines is crucial for optimal oil flow. The size and diameter should be appropriate for the engine's oil system and the turbocharger's oil requirements to prevent restrictions or excessive pressure drops.
• Flexibility and routing: Evaluate the flexibility of the oil lines to ensure they can be properly routed without kinks or sharp bends. Flexible lines are easier to install and can adapt to the available space in the engine compartment.
